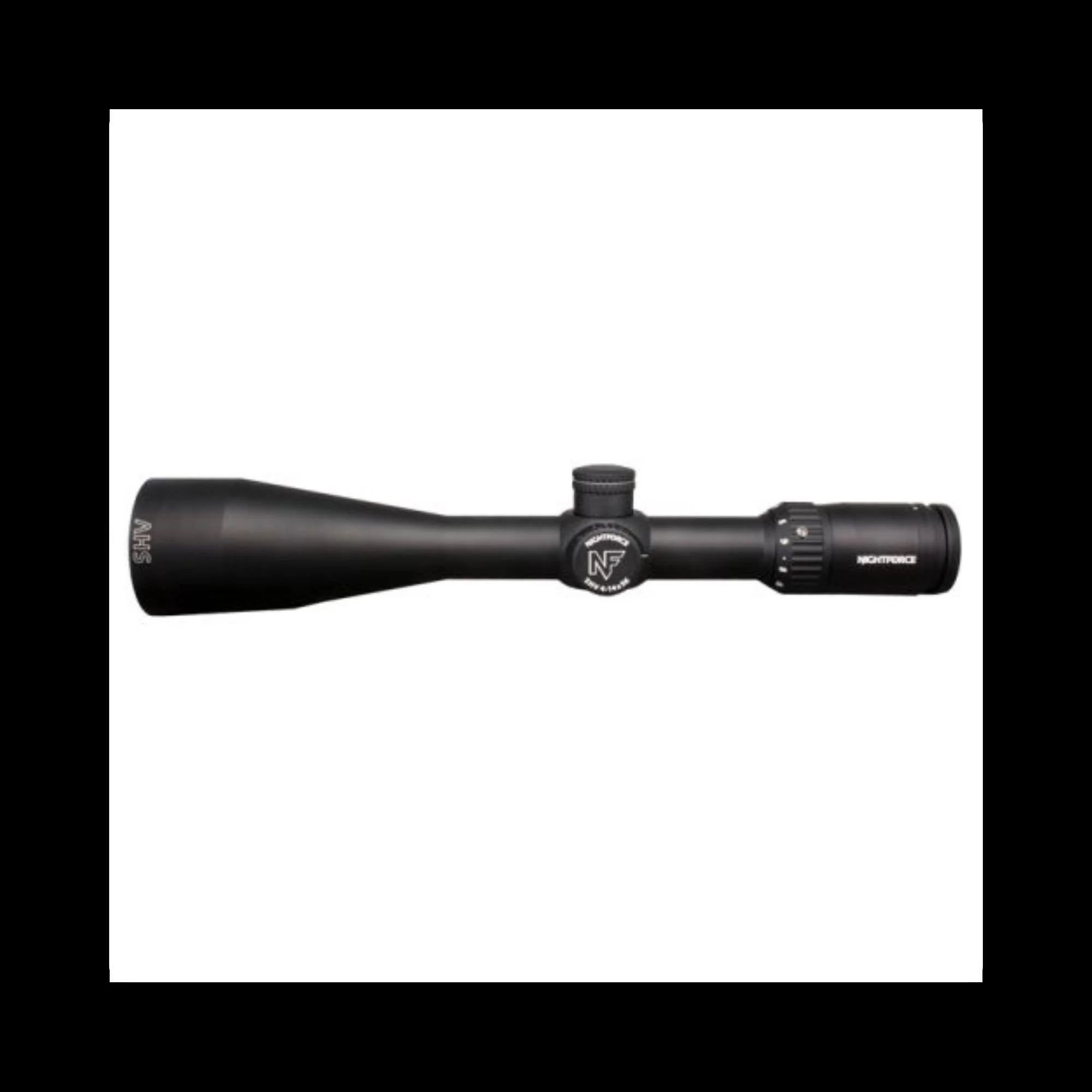

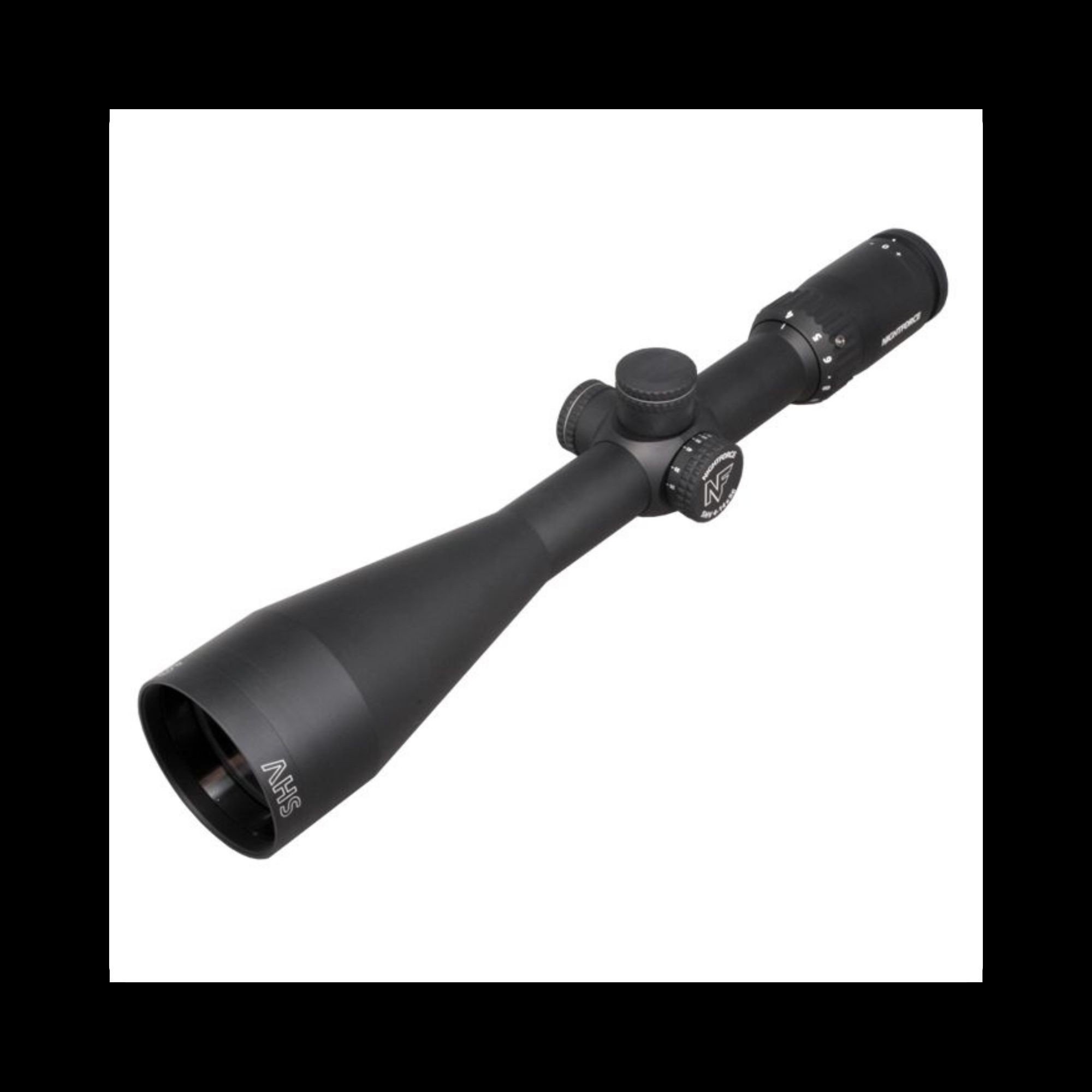

Nightforce SHV 4-14x56 - MOAR C520 (no illumination)

General Specifications

• Model: C520

• Magnification Range: 4× – 14×

• Objective Lens Diameter: 56 mm

• Focal Plane: Second Focal Plane (SFP)

• Reticle: MOAR (non-illuminated)

• Scope Type: Variable power riflescope (Night-Optics)

Turrets & Adjustments

• Click Value: 0.25 MOA per click

• Turret Style: Capped, finger-adjustable

• Elevation Adjustment Range: ~90–100 MOA

• Windage Adjustment Range: ~70 MOA

• Adjustment Type: MOA

• Parallax Adjustment: Side focus, 25 yards to infinity (Nightforce Optics)

Optical Performance

• Field of View (@100 yds):

  • 24.9 ft (4×)

  • 7.3 ft (14×)

• Eye Relief: ~3.5 – 3.6 inches

• Exit Pupil: 12.0 mm (low) – 3.6 mm (high)

• Glass Quality: Fully multi-coated optics for clarity and low-light performance (Nightforce Optics)

Construction & Dimensions

• Tube Diameter: 30 mm

• Length: 14.8 in (376 mm)

• Weight: 26.9 oz (non-illuminated model)

• Material: Aircraft-grade aluminum (6061-T6)

• Finish: Matte black (Nightforce Optics)

Features & Build

• Illumination: None (non-illuminated model)

• Turret Design: Protective capped turrets for field use

• Focus System: European-style fast-focus eyepiece

• Durability: Built to Nightforce ruggedness standards (shock, water, and fog resistant) (Nightforce Optics)
